The COMPACT Collection is a modular solution designed to support long-term child development, ideal for public and private gardens and recreational spaces.
Its intelligent design allows the set to be adapted according to age and needs, evolving from basic games to more advanced motor and sensory challenges. Each module can be used as a climbing wall, lookout, obstacle course, or resting area, fostering creativity and free play.
This version includes a swing combined with a nest and basket seat, expanding play possibilities both individually and in groups. Its modern aesthetic and compact dimensions allow it to be easily integrated into any outdoor space.
Equipment included
• Tower with platforms at 0.15 m and 1.25 m – 1 set
• Entrance ladder, height 1.25 m – 1 pc.
• Slide, height 1.25 m – 1 pc.
• "Drum" type box – 1 pc.
• Game table – 1 pc.
• Canvas roof – 1 pc.
• Canvas blinds – 1 pc.
• Perforated panels – 1 set
• Slatted panels – 1 set
• Rope panels – 1 set
• Play panels – 1 set
• Swing with nest and basket seat – 1 pc.

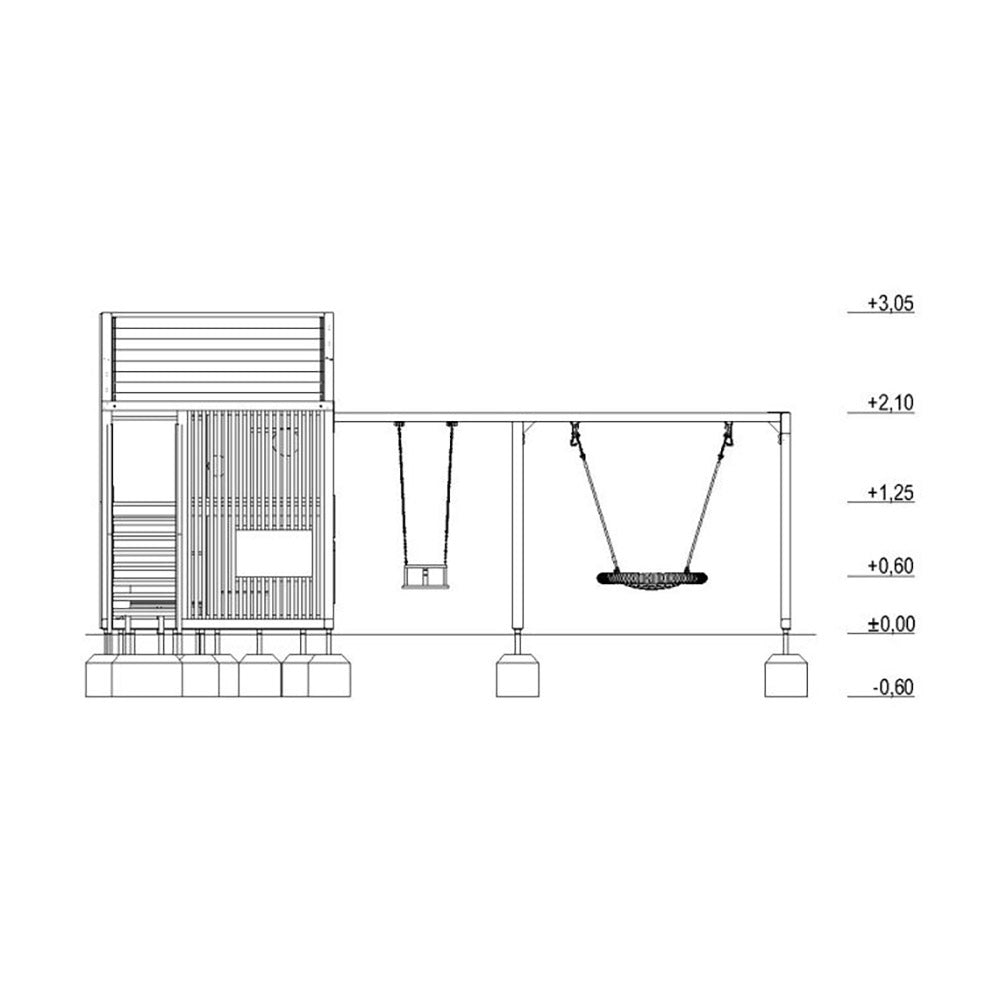

Dimensions and technical data
• Number of users: 23
• Age group: 2+
• Access type: Easy access
• Width: 5.70 m
• Length: 6.56 m
• Height: 3.05 m
• Minimum required space: 9.56 x 9.13 m
• Free fall height: 1.25 m
• Fall surface: 65.95 m²
• Foundation depth: -0.60 m
Materials
• Main structure: glued laminated pine wood (90x90 mm), impregnated and protected with acrylic enamel
• Platforms: 15 mm waterproof plywood on wooden structure
• Cover elements: plywood and HDPE board
• Metal elements: galvanized steel with powder coating
• Anchors: hot-dip galvanized steel
• Ropes: multifilament polypropylene with steel core (Ø16 mm)
• Slide: HDPE + AISI304 stainless steel
• Play panels: maintenance-free composite materials
• Swing seats: polypropylene ropes with metal ring and shock-absorbing coating
• Swing chain: stainless steel (6 mm)
• Roof and blinds: waterproof and UV-resistant canvas
• Caps: plastic
• Foundation: concrete minimum class C12/15
Safety and standards
• Approved playground
• Complies with standard PN-EN 1176-1:2024-03
• Designed in accordance with European playground safety regulations
• Professional installation recommended
• Compatible with approved shock-absorbing surfaces
Recommended use
• Private and public gardens.
• Single-family homes
• Domestic recreational spaces
• Community play areas
