The COMPACT Collection is a modular solution designed to support children's development long-term, ideal for public and private gardens and recreational spaces.
Thanks to its versatile design, the set evolves with the child, offering everything from basic games to more complex motor challenges. Each module can function as a climbing wall, lookout, obstacle course, or resting area, fostering creativity and free play.
This enlarged version also incorporates a nest swing, increasing play possibilities and social interaction. Its compact and modern design allows it to be easily integrated into any garden.
Equipment included
• Tower with platforms at 0.15 m and 1.25 m – 1 set
• Entrance ladder, height 1.25 m – 1 pc.
• Slide, height 1.25 m – 1 pc.
• "Drum" type box – 1 pc.
• Game table – 1 pc.
• Canvas roof – 1 pc.
• Canvas shutters – 1 pc.
• Perforated panels – 1 set
• Slat panels – 1 set
• Rope panels – 1 set
• Game panels – 1 set
• "Goalkeeper" panel – 1 set
• Swing with nest seat – 1 pc.
Dimensions and technical data
• Number of users: 24
• Age group: 2+
• Access type: Easy access
• Width: 5.70 m
• Length: 7.18 m
• Height: 3.05 m

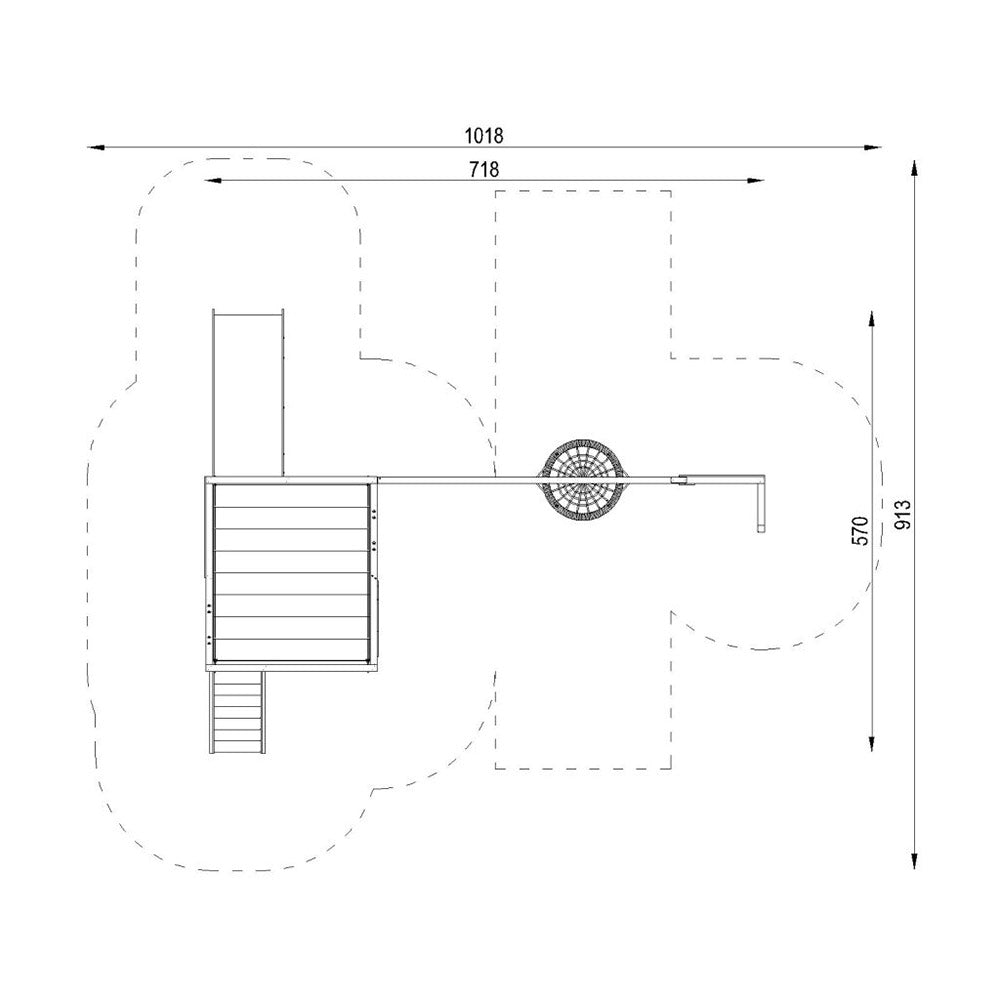

• Minimum space required: 10.18 x 9.13 m
• Free fall height: 1.25 m
• Fall surface: 62.66 m²
• Foundation depth: -0.60 m
Materials
• Main structure: glued laminated pine wood (90x90 mm), impregnated and protected with acrylic enamel
• Platforms: 15 mm waterproof plywood on wooden frame
• Cover elements: waterproof plywood and HDPE board
• Metal elements: galvanized steel with powder coating
• Anchors: hot-dip galvanized steel
• Ropes: multifilament polypropylene with steel core (Ø16 mm)
• Slide: HDPE + AISI304 stainless steel
• Game panels: maintenance-free composite materials
• Swing seat: braided polypropylene ropes with metal ring
• Swing chain: stainless steel (6 mm)
• Roof and shutters: UV resistant and waterproof canvas
• Caps: plastic
• Foundation: concrete minimum class C12/15
Safety and regulations
• Approved playground
• Complies with standard PN-EN 1176-1:2024-03
• Designed in accordance with European safety standards for playgrounds
• Professional installation recommended
• Compatible with approved shock-absorbing surfaces
Recommended use
• Private and public gardens.
• Single-family homes
• Domestic recreational spaces
• Community play areas
